Horizontal Knee-Type Milling Machine for Heavy Slab Milling XL6036C

Horizontal Knee-Type Milling Machine for Heavy Slab Milling XL6036C

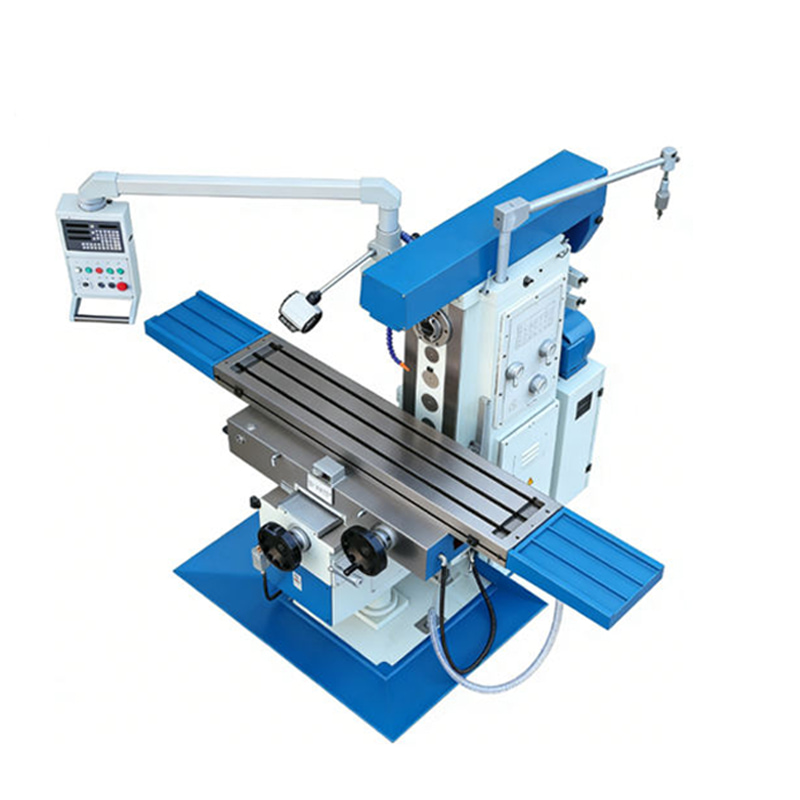

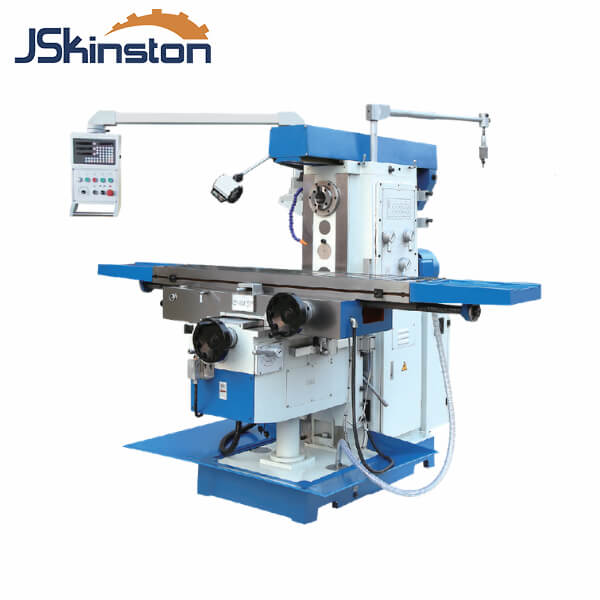

XL6036C/CL horizontal milling machine comes with standard vertical milling head. It features single servo control and high rigidity for diversified machining.The XL6036C/CL horizontal milling machine features a 5.5kW horizontal spindle with 12 speeds (60-1800 rpm) and arbor support. Ideal for slab milling, gang milling, and heavy material removal.

Pedido (MOQ) :
1
Origem do produto :
China
Cor :
Customized
Porto de embarque :
Qingdao
Tempo de espera :
30
Peso :
1550Kg

Consulte agora

Durable Horizontal Milling Machine with Vertical Milling Head

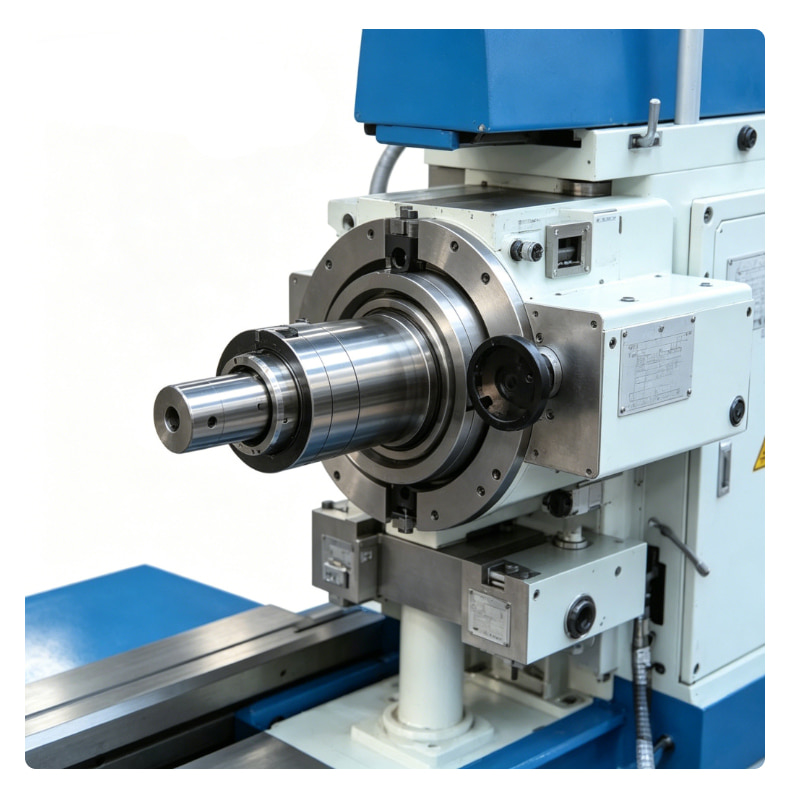

1.Advantages of the horizontal spindle: The spindle is arranged horizontally and, in conjunction with the tool holder, allows multiple milling cutters to be mounted for simultaneous combined milling.

2.Large-diameter tool holders: A φ32 mm tool holder is fitted as standard, with a φ40 mm option available; these offer high rigidity and are suitable for deep cuts.

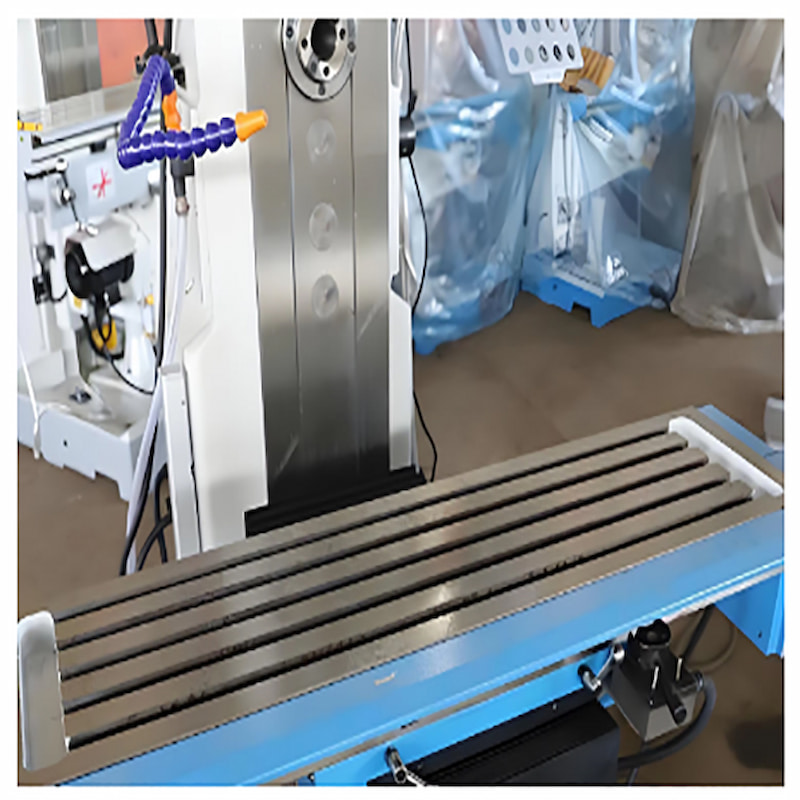

3.Wide worktable: 1325 × 360 mm, with a longitudinal travel of 1100 mm, a transverse travel of 320 mm and a vertical travel of 450 mm, making it suitable for large plate-type components.

4.Adjustable cantilever: 500 mm stroke; the tool holder bracket position can be adjusted to accommodate tool holders of varying lengths.

specification

Specification	Unit	XL6036C	XL6036CL
Spincle taper	一	7:24 ISC50
Distance between spindle nose and table	mm	20-470
Distance from spindle axis to arm	mm	175
Horiontal spindle speed range	一	12steps 60~1800r.p.m
Table size	mm	1325×360	1600×360
Tablo travol(XY/Z)	mm	1100/320/450	1300/320/450
Table feed(XY/Z)	mm/min	8 steps 30-750/20-500/15-375
Table rapid speed(XY/Z)	mm/min	1200/800/600
T-slots(NO:/width/pitch)	mm	3/18/80
Arm travel	mm	500
Main motor power	kw	5.5
Torque of XN/Z axis AC servo motor	N.m	15
Overallsize	mm	2245×2100×1870	2520×2100×1870
Net weight	kg	2500	2550

Product Advantages

Efficient Gang Milling
Horizontal spindle with arbor support – multiple cutters can be mounted for simultaneous processing of several surfaces.
Adjustable Overarm
Arbor support position adjustable – accommodates different arbor lengths, flexible processing.
Flexible Swiveling Table
Table rotates ±45° left/right, allowing bevels and helical grooves without complex fixtures, greatly expanding machining range.
Extended Arbor Support
Multiple cutters process several surfaces of long workpieces simultaneously – greatly improves batch production efficiency.

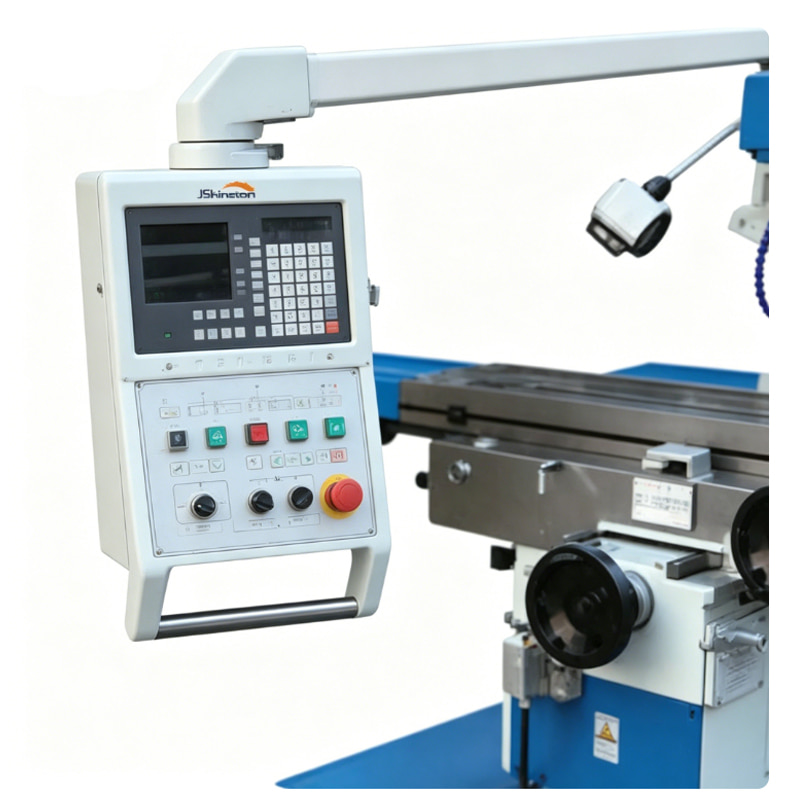

CNC Upgrade Ready
Reserved interface – add servo motors and ballscrews to upgrade to CNC horizontal mill.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Lathes manufacturer

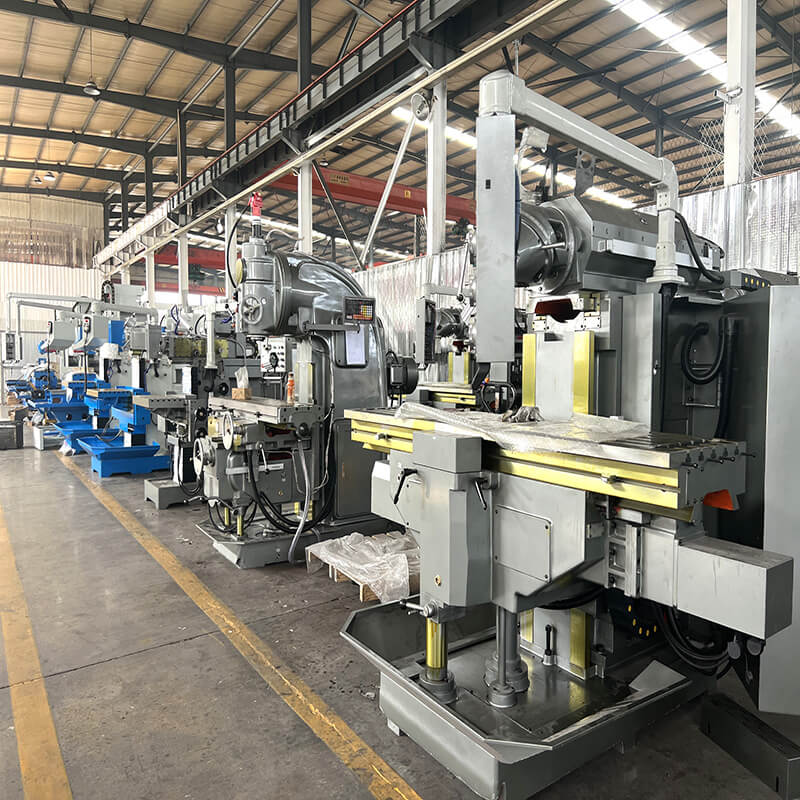

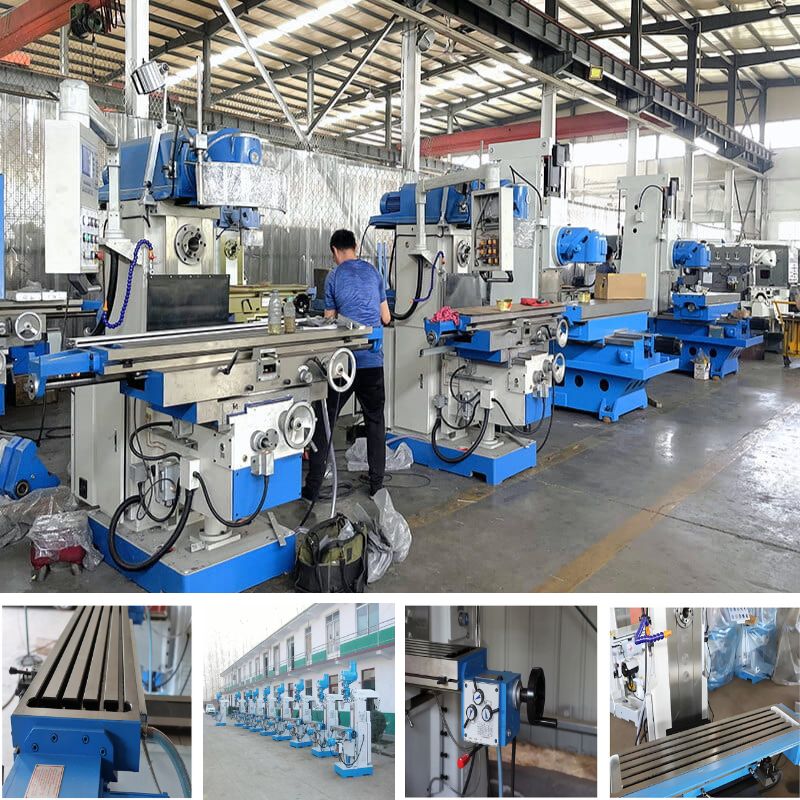

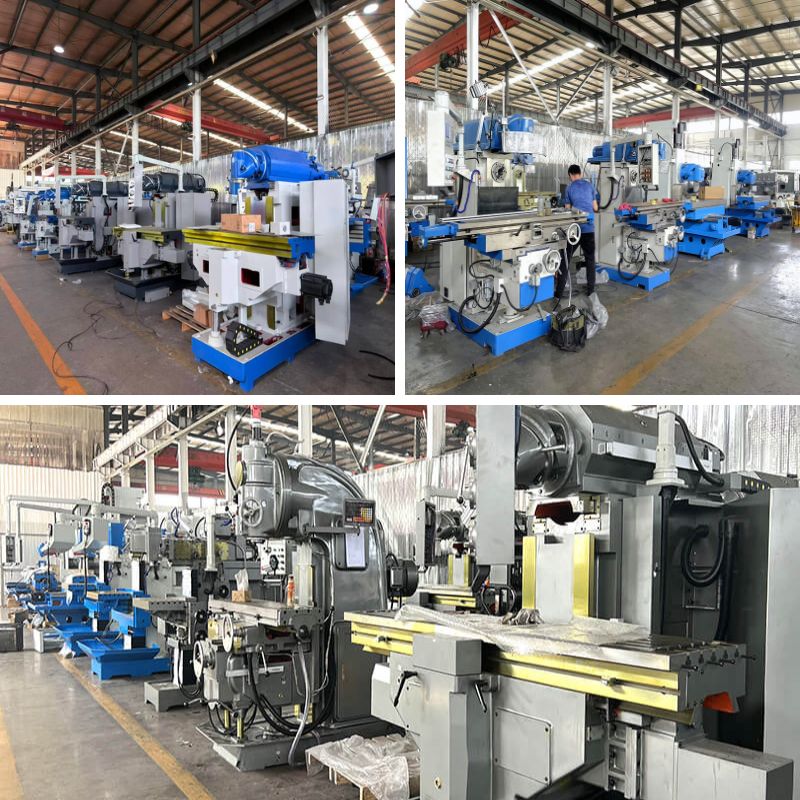

factory show

Professional Production Base, Strength in Precision Manufacturing

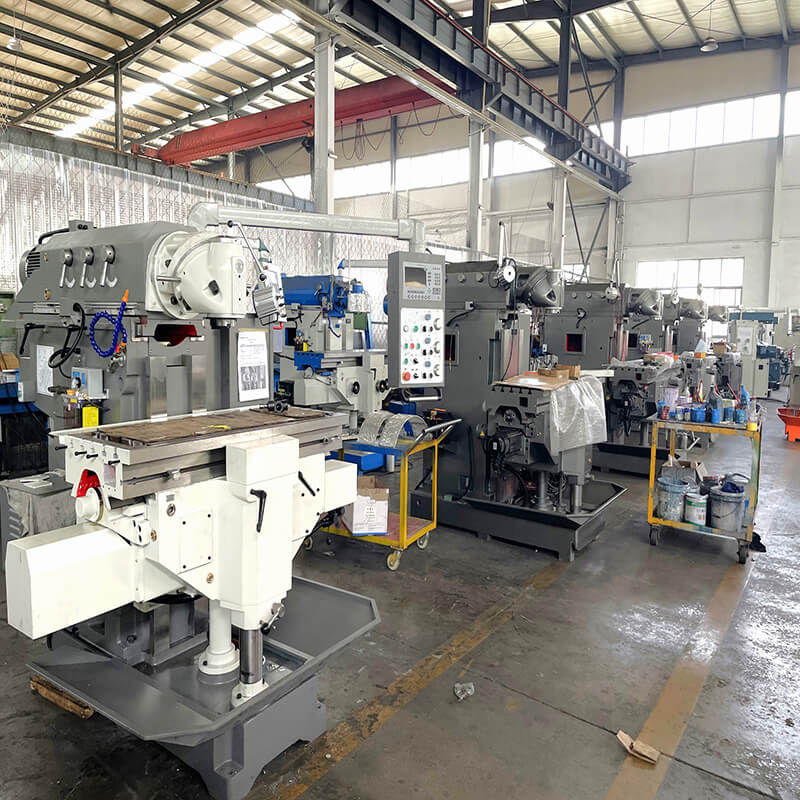

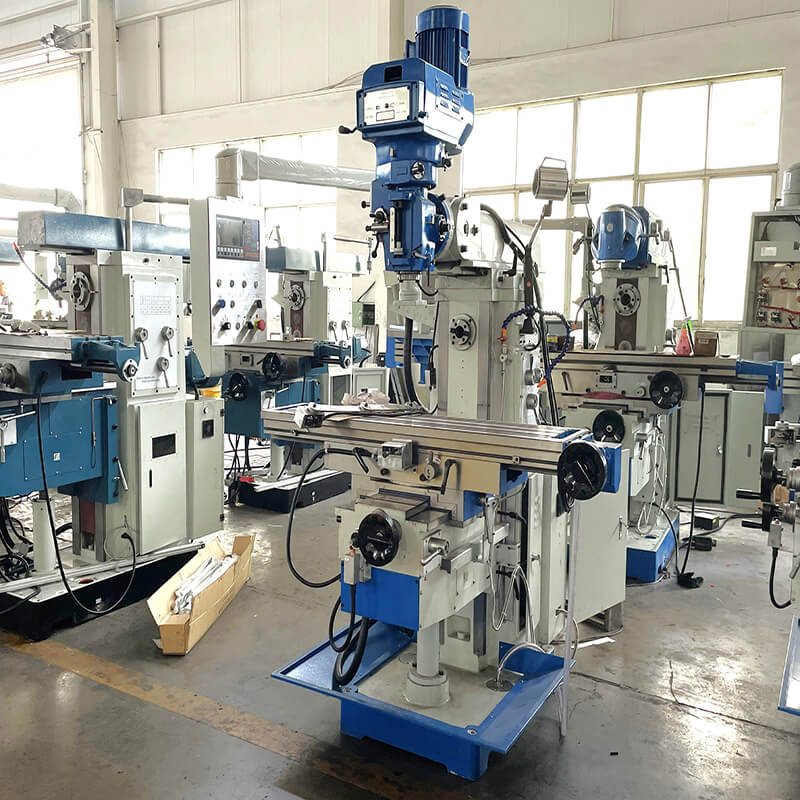

Multi‑Function Universal Milling Equipment Factory Exhibition cnc machine High-quality lathe

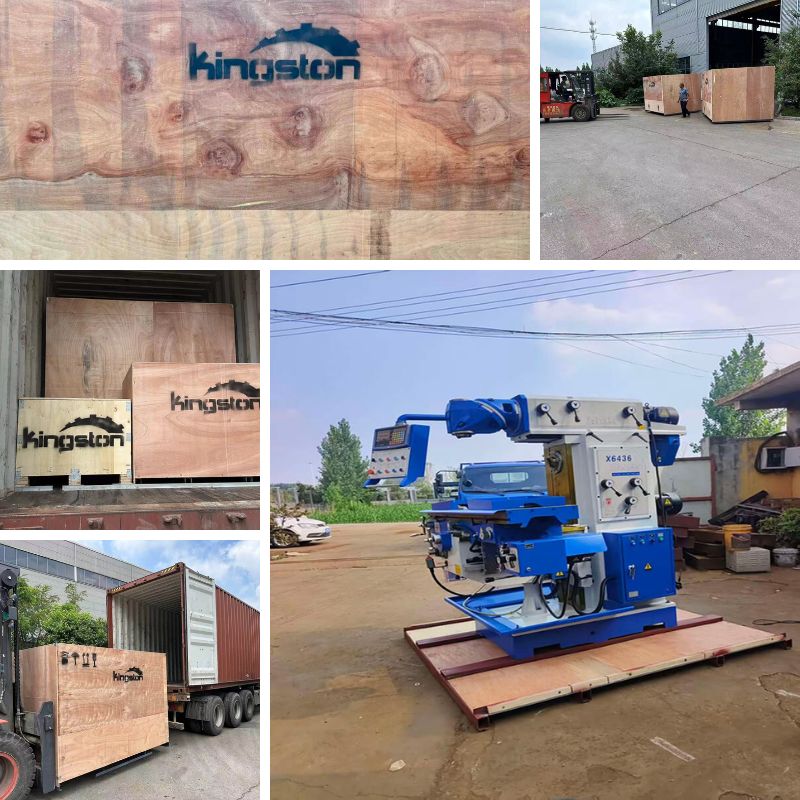

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Stable Universal Metal Milling Machine
Heavy machinery manufacturer

1.Can the XL6036C perform multi-tool milling?

Yes. Multiple milling cutters can be mounted on the tool holder to machine several surfaces in a single operation.

2.Is a vertical milling head included?

A vertical milling head attachment is included as standard, with a speed range of 0–600 rpm, enabling both vertical and horizontal machining.

3.Is it suitable for milling racks?

It is highly suitable; when used with an indexing head, it can continuously mill long racks.

4.Can the worktable move quickly?

Yes, with XY rapid traverse at 1200 mm/min and Z rapid traverse at 600 mm/min.

5.Does it require a foundation for installation?

We recommend a 150 mm thick concrete foundation, though it can also be placed directly on vibration-damping pads.
