Heavy Duty High Precision XH1506/08 Single-coloumn Horizontal Milling Machine

Gantry-type Single Column Milling Machine

Heavy Duty High Precision XH1506/08 Single-coloumn Horizontal Milling Machine

The XH1506/08 is a heavy-duty, high-precision single-column horizontal milling machine designed for large-scale industrial machining. It delivers exceptional rigidity and accuracy for processing heavy workpieces in sectors like aerospace, automotive, energy, and heavy equipment manufacturing.

Pedido (MOQ) :
1
Origem do produto :
China
Cor :
Customized
Porto de embarque :
Qingdao
Tempo de espera :
30
Peso :
2000Kg

Consulte agora

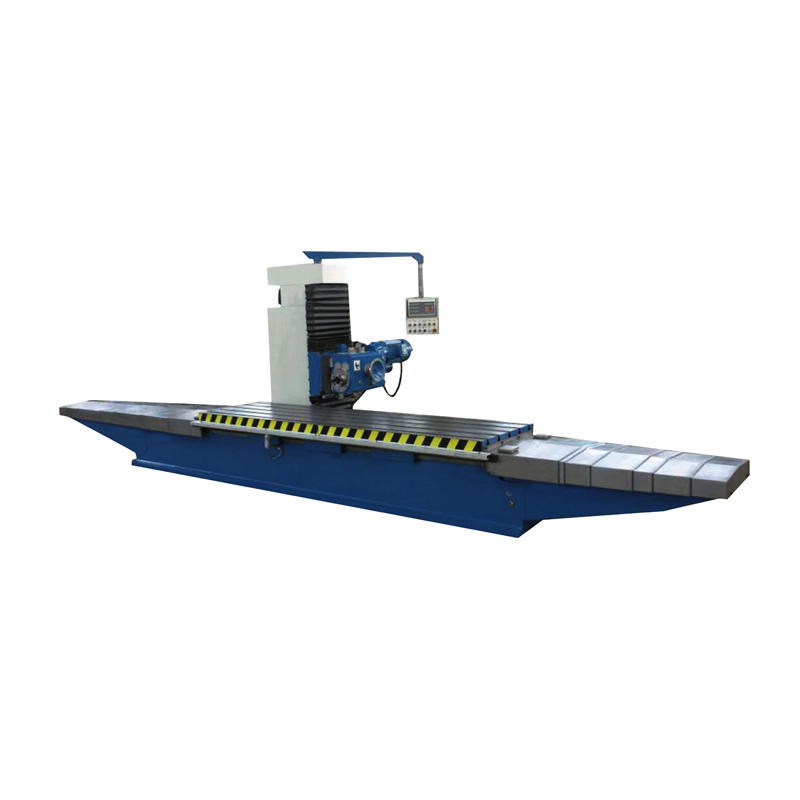

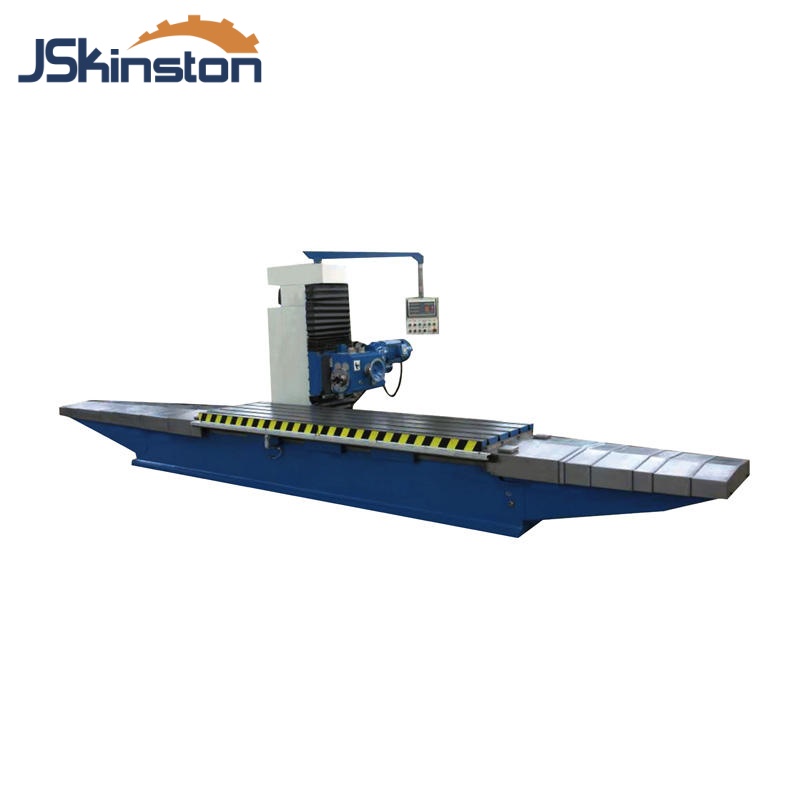

XH1506/08 Single-coloumn Horizontal Milling Machine

1. Box-Type Slideways – Extra-wide box-type guideways provide superior load distribution and stability during heavy intermittent cutting.

2. Three-Axis Hardened Ways – All three axes feature induction-hardened and precision-ground slideways, ensuring long-term geometric accuracy and wear resistance.

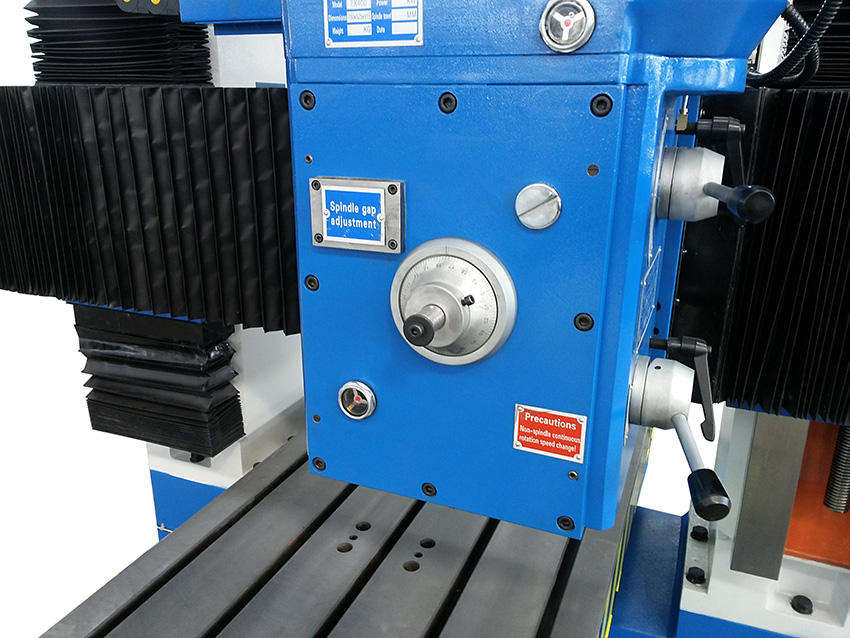

3. High-Rigidity Spindle Assembly – Precision angular contact bearings and optimized spindle geometry minimize thermal deformation for consistent accuracy over long runs.

4. Powerful Chip Evacuation System – Integrated screw-type chip conveyor automatically removes heavy chips, preventing accumulation and reducing manual cleaning downtime.

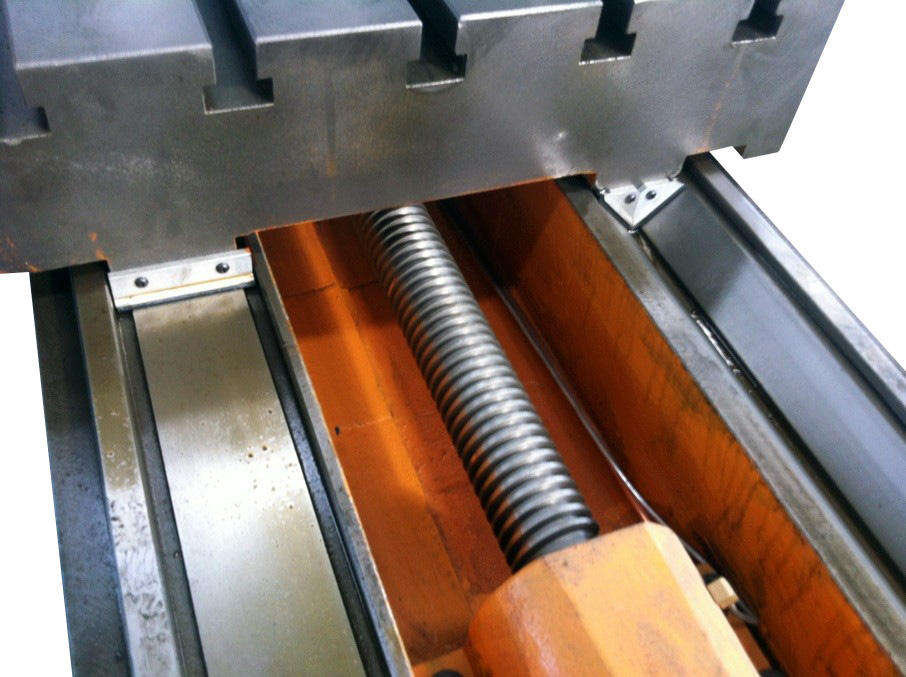

5. Heavy-Duty Ball Screws – Pre-tensioned precision ball screws on all axes eliminate backlash and ensure high positioning accuracy for demanding applications.

6. Wide Column Base – Extra-wide column base with multiple anchor points distributes cutting forces evenly, enhancing overall machine stability during heavy cuts.

7. Optional 4th Axis Rotary Table – Expandable with a CNC rotary table for complex 4-axis machining of turbine blades, camshafts, and intricate components.

8. Enclosed Safety Guarding – Full splash and chip guarding with interlocked safety doors protect operators while allowing clear visibility of the machining process.

specification


Specification			Unit	X1506	X1508
Distance between spindle and table surface			mm	0-750/1000
Table travel			mm	1500/2000/2500/3000
Table size		Length	mm	1500/2000/2500/3000
		Width	mm	630	800
		No. of T-Slots		5
		Width of T-slots	mm	22
Table feeding speed	Feed		mm/min	Infinite variable
	Rapid travel		mm/min	1400
Spindle taper				7:24 ISO50
(6 speeds) Spindle speed step			r/min	82-505
Spindle swivel angle				±35°
Vertical travel speed of milling head				Infinite variable
Stroke of milling head			mm	350
Power of spindle motor			Kw	7.5
Power of milling head feed motor			Kw	0.4
Power of table motor			Kw	2.2(1500)/3(2000.2500)/4
Max. workpiece weight			Kg	1500/1500/2000/2000

Product Advantages

Heavy-Duty Single-Column Construction
Massive cast iron structure provides exceptional rigidity and vibration damping for heavy cutting.
High-Precision BT50 Spindle
Delivers high torque and accuracy for machining hard materials like steel, titanium, and cast iron.
Wide Speed Range (20-3000 rpm)
Low-speed high-torque for roughing; high-speed for precision finishing.
Large Work Envelope
Extended table and travel handle large, heavy workpieces in one setup.
Optional CNC Control
Available with Fanuc, Siemens, or other CNC systems for automated precision.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Community charging overall solution covers all application

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

factory show

Professional Production Base, Strength in Precision Manufacturing.

factory factory

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

packing

1: How can l choose the most suitable machines?

Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.

You can also send us the products drawing, we will choose the most suitable machines for you.

2: Whst′s your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machine, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper mahine and so on.

3: What is your trade terms?

FOB, CFR and CIF all acceptable.

4: What′s the Payment Terms?

T/T, 30% initial payment when order, 70% balance payment before shipment, lrrevocable LC at sight.

5: What′s the MOQ?

A: 1 set.(Only some low cost machines will be more than 1 set)
