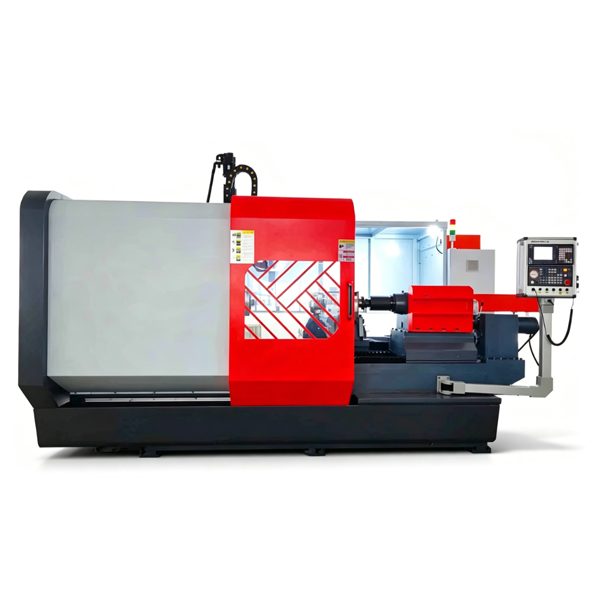

The KST650S automatic CNC spinning lathe is a fully servo-controlled forming equipment customized for aluminum, 304/316 stainless steel and copper axisymmetric workpieces. It integrates necking, flanging, deep drawing and seamless one-piece forming in one workflow.

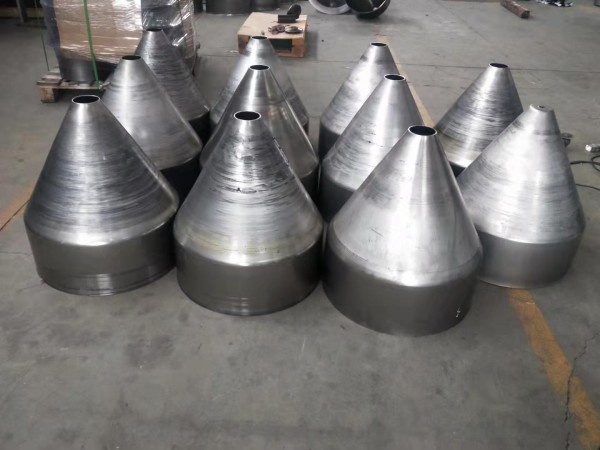

It widely manufactures venturi valves, lamp reflectors, cookware, fan cones and auto exhaust shells for HVAC, lighting, kitchenware and automotive factories. With heavy cast iron body and intelligent CNC system, it delivers stable precision, smooth workpiece surface and high efficiency for mass production. All units pass CE safety certification and support customized forming parameters for different rotary parts.
Pedido (MOQ) :
1Origem do produto :
ChinaCor :
CustomizedPorto de embarque :
ShanghaiTempo de espera :
30Peso :

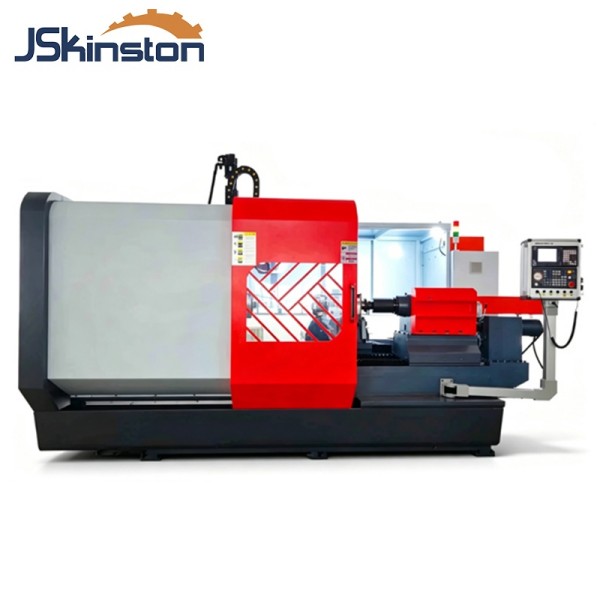

84TonAutomatic KST650S CNC Spinning Machine for Aluminum, Stainless Steel Axisymmetric Parts
1.Fully Automatic CNC Servo Control
Stores dozens of forming programs for fast size switching; stable dimensional tolerance ensures consistent batch quality, greatly cutting manual operation cost.
2.Multi-Material & Multi-Scenario Forming

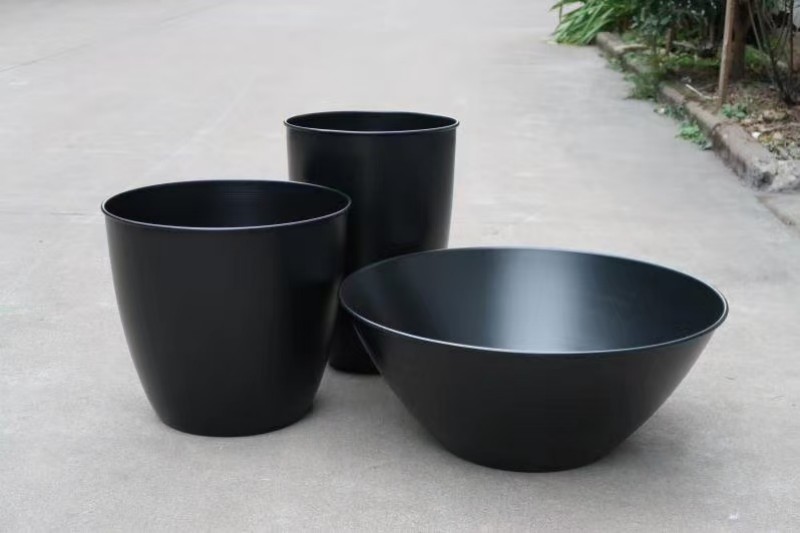

Perfectly processes aluminum and stainless steel blanks, produces venturi dampers, lamp shades, cookware and other axisymmetric parts to expand your product line.
3.Seamless One-Step Spin Forming
Forms integral rotary components without welding seams; uniform wall thickness and smooth inner surface avoid air leakage and secondary polishing work.
specification
|
Item |
Data |
|||
|
Model |
KST650S |
KST850S |
KST1050S |
|
|
max raw material dia |
650mm |
850mm |
1000mm |
|
|
cross slider dia |
400mm |
600mm |
700mm |
|
|
main power |
11Kw |
15Ky |
18.5Kw |
|
|
main spindle speed |
2500Rpm |
2000Rpm |
1500Rpm |
|
|
stroke |
X axis |
600mm |
800mm |
1000mm |
|
Y axis |
500mm |
550mm |
600mm |
|
|
max tail force |
10Kn |
15Kn |
15Kn |
|
|
tail stroke |
500mm |
500mm |
500mm |
|
|
material |
copper/alu |
0.5-3.5mm |
0.5-5.0mm |
0.5-5.0mm |
|
ms |
0.5-2.0mm |
0.5-2.5mm |
0.5-3.0mm |
|
|
ss |
0.5-1.5mm |
0.5-2.0mm |
0.5-2.5mm |
|
|
post station |
4/6/8 |
4/6/8 |
4/6/8 |
|
|
disc return plate travel |
300mm |
300mm |
300mm |
|
|
positional accuracy |
0.01mm |
0.01mm |
0.02mm |
|
Product Advantages
Why choose us
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
Our certification
Authoritative Certifications, Stable and Reliable Quality.

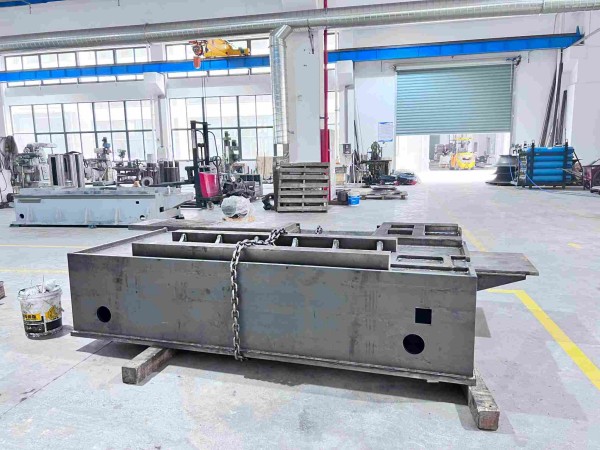

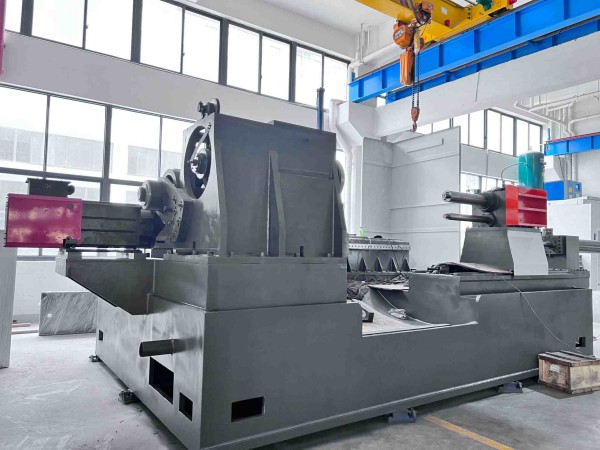

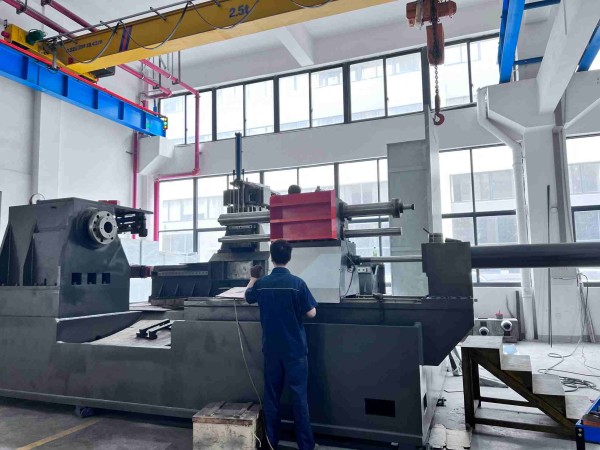

factory show
Professional Production Base, Strength in Precision Manufacturing
Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ
1.What is this machine used for?
This is a Metal Spinning Lathe. It cold-forms rotating metal discs (blanks) over a mandrel (tool) using pressure from rollers to create axisymmetric hollow parts ideal for lighting, cookware, trophies, vessels, end caps, horns, and more. Perfect for small-batch custom and artistic production.
2.Is it CNC controlled?
We offer two main types:Full CNC Spinning Machine: Standard with Siemens or FANUC system for programmable roller paths. Best for complex shapes and batch production.
3.What are the core components? How is quality ensured?
Spindle Bearings: High-precision SKF/FAG bearings.
Hydraulic/Electrical: Rexroth/Siemens or equivalent brands.
Frame: One-piece cast or welded steel structure, stress-relieved for long-term stability and vibration resistance.
4.What materials can be processed? How is the surface finish?
Materials: Aluminum, copper, mild steel, stainless steel (annealed), brass, and other ductile metals.
Surface: Spinning can produce excellent mirror or textured finishes, often eliminating the need for polishing. Material work-hardens during the process.
5.What is the MOQ?
Machine MOQ is 1 unit.
