The KST1280HP-I is an industrial heavy-duty high-power CNC spinning machine, specially engineered for thick-wall metal blanks and large-diameter rotary component forming.This heavy-duty spinning unit adopts fully reinforced welded frame with secondary stress relief treatment, delivering powerful hydraulic spinning pressure that far exceeds standard light spinning equipment.
Pedido (MOQ) :
1Origem do produto :
ChinaCor :
CustomizedPorto de embarque :
ShanghaiTempo de espera :

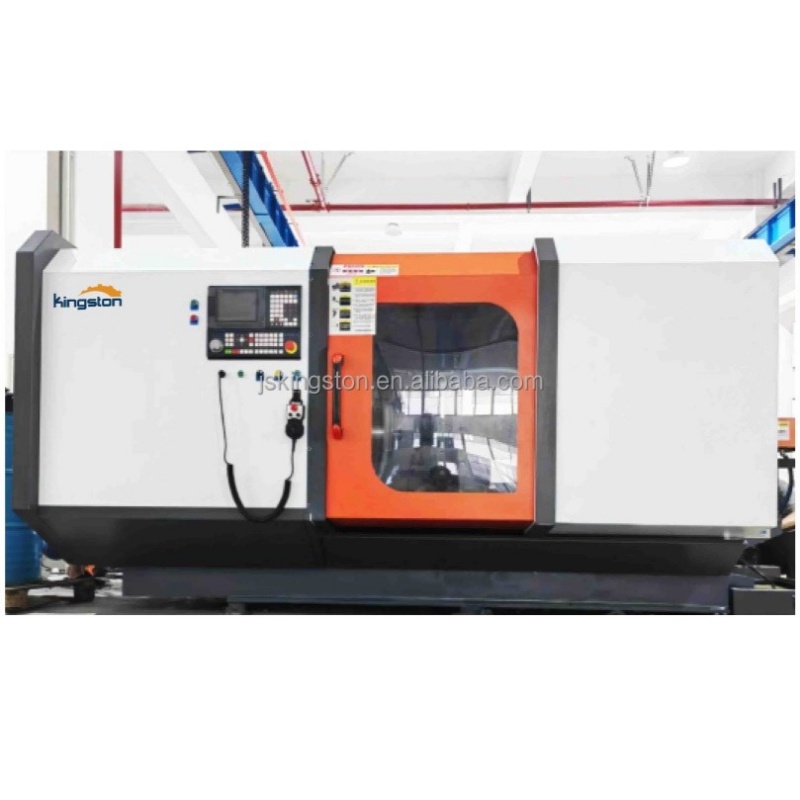

30KST1280HP-I High Power CNC Metal Spinning Machine For Pressure Vessel

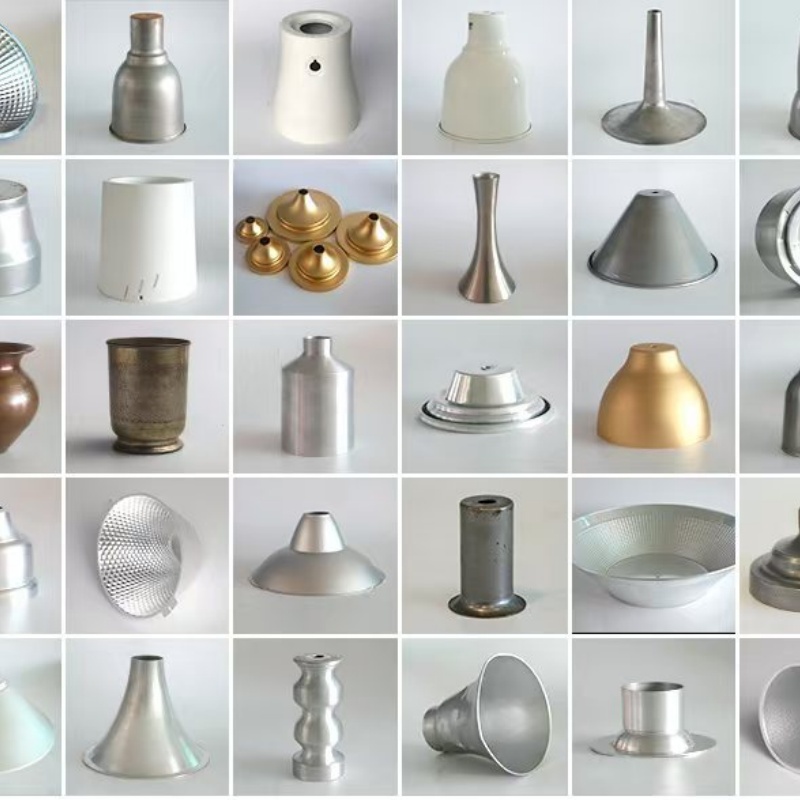

Built with stress-relief heavy welded frame and high-torque spindle, this multi-axis servo CNC spinning machine outputs strong hydraulic pressure for integrated necking, flanging and curve spinning. It supports cold & optional hot spinning for alloy steel, stainless steel and aluminum, ideal for pressure vessel heads, fan cones and auto parts. Equipped with overload protection and programmable storage, it guarantees uniform wall thickness and stable precision for mass batch production.
specification
|
Project |
Data |
|
|
Model specifications |
KST1280HP-I |
|
|
Maximum sheet diameter |
1280mm |
|
|
Overrunning plate barrel diameter |
800mm |
|
|
Main motor power |
30Kw |
|
|
Spindle speed |
1000Rpm |
|
|
Itinerary |
Axis |
1250mm |
|
Axis |
800mm |
|
|
Maximum tail thrust |
15Kn |
|
|
Tail thrust stroke |
500mm |
|
|
Processing material thickness |
Copper and aluminum materials |
0.5-5.0mm |
|
Steel |
0.5-4.Qmm |
|
|
Stainless steel |
05-2.5mm |
|
|
Tool holder station |
4/8 |
|
|
Wafer blank tray travel |
300mm |
|
|
Positioning accuracy |
0.02mm |
|
Product Advantages
Why choose us
Mature And Stable Technology
Support Customized Solutions
Complete After-sales Service
Our certification
Authoritative Certifications, Stable and Reliable Quality.
factory show
Professional Production Base, Strength in Precision Manufacturing
Packing and shipping
Safe & Professional Transportation, On-Time Delivery Guaranteed
FAQ
1. Q: Why is this a high-power spinning model for pressure vessels?
A: Equipped with heavy hydraulic drive and large spinning force, it handles thick steel blanks for high-pressure tank forming.
2. Q: What pressure vessel parts can it produce?

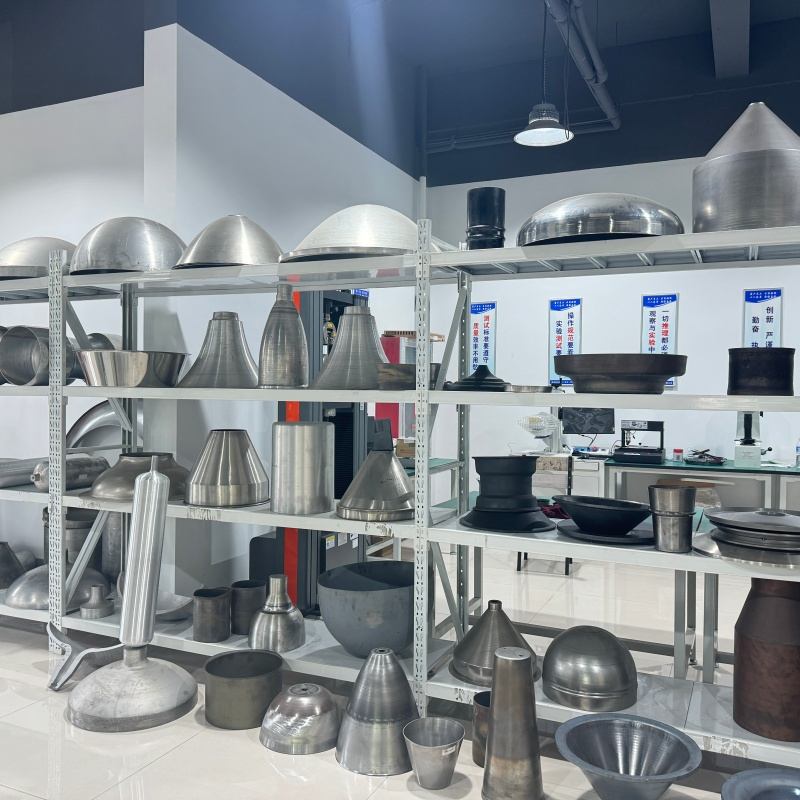

A: Ellipsoidal heads, hemispherical caps, cylinder bottom closures and tank neck sections.
3. Q: What’s the advantage of spinning over stamping & welding?
A: No welding seams, uniform wall thickness, higher structural strength and better pressure resistance.
4. Q: What metals can the machine process?
A: Carbon steel, alloy steel, stainless steel and thick aluminum alloy for industrial pressure tanks.
5. Q: Can it store multiple production programs?
A: Yes, save parameter files for different tank sizes, fast switching for mass mixed production.
