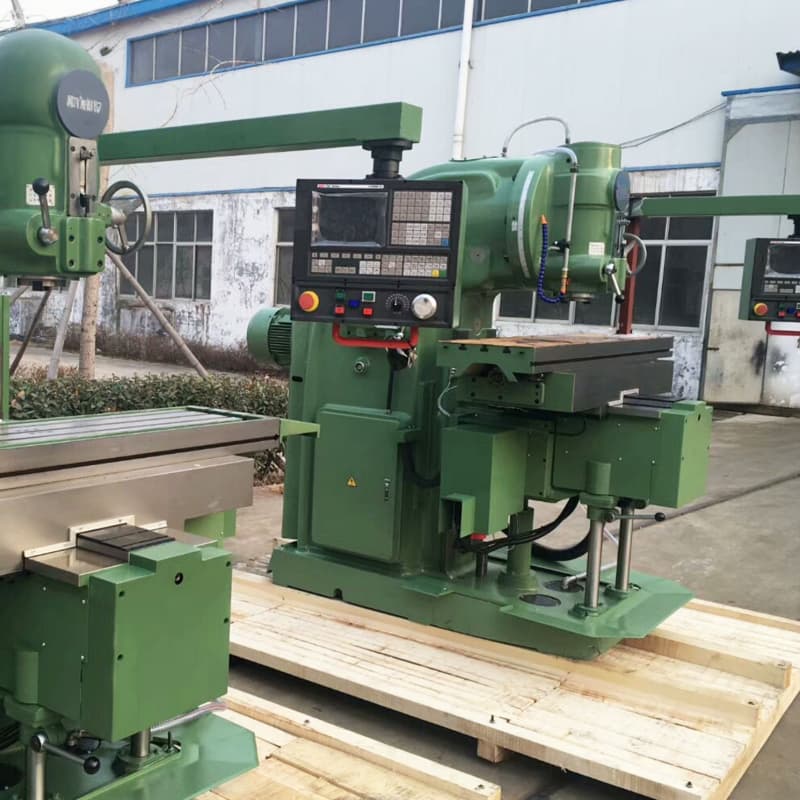

High-Efficiency Tool XK5040 CNC Vertical Milling Machine

High-Efficiency Tool XK5040 CNC Vertical Milling Machine

The XK5040 CNC vertical milling machine is a classic high-efficiency metal processing equipment, widely adopted in precision component manufacturing and mold production. Designed with a vertical spindle layout and robust integral cast iron structure, it features strong structural rigidity and excellent shock resistance. This model supports complex contour milling, hole processing, grooving and multi-step forming operations, covering diversified machining demands for ferrous metals, non-ferrous alloys and engineering materials.

Pedido (MOQ) :
1
Origem do produto :
China
Cor :
Customized
Porto de embarque :
Qingdao
Tempo de espera :
30
Peso :
4200Kg

Consulte agora

High-Efficiency Tool XK5040 CNC Vertical Milling Machine

Fitted with a mature industrial CNC system and high-performance servo drive components, the XK5040 delivers rapid response, precise positioning and smooth feed movement. Every key structural part undergoes strict stress relief treatment to reduce long-term thermal deformation and ensure lasting machining stability. Featuring humanized operation logic, simple programming and convenient daily maintenance, it is highly suitable for mechanical workshops, equipment supporting processing, small and medium batch customized production.

specification

Specification	Units	XK5040
Table size	mm	1700*400
T slots(N/W/D)	mm	3/18/90
Longitudinal travel	mm	1000
Cross travel	mm	350
Vertical travel	mm	375
Table longitudinal feed(auto)	mm/min	6-3200
Table cross feed(auto)	mm/min	6-3200
Table vertical feed (auto)	mm/min	3-1600
Distance between spindle and table surface	mm	90-465
Spindle hole taper	一	ISO 50(7:24)
Spindle speed step	step	18
Spindle speed range	r/min	30-1500
Max.swivel angle of head	-	±45°
Stroke of spindle quill	mm	85
Power of spindle motor	kw	11
Torque of×/Y/Z axis AC servo motor	N.m	15/15/23
Overall size	mm	276021602250
Net weight	kg	4200

Product Advantages

1.Rigid Cast Iron Construction

Heavy-duty overall frame effectively weakens cutting vibration and maintains long-term dimensional stability.
2.Precision CNC Control

Stable numerical control system realizes automatic operation, flexible programming and high repeat positioning accuracy.
3.Vertical Spindle Performance

High-rigidity spindle unit provides steady output, adapting to both rough cutting and fine finishing.
4.Efficient Transmission System

High-precision ball screw and linear guide structure ensure fast feeding and smooth running.
5.Diversified Industrial Application

Widely used in machinery parts, mold processing, automobile accessories and multi-variety batch production.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

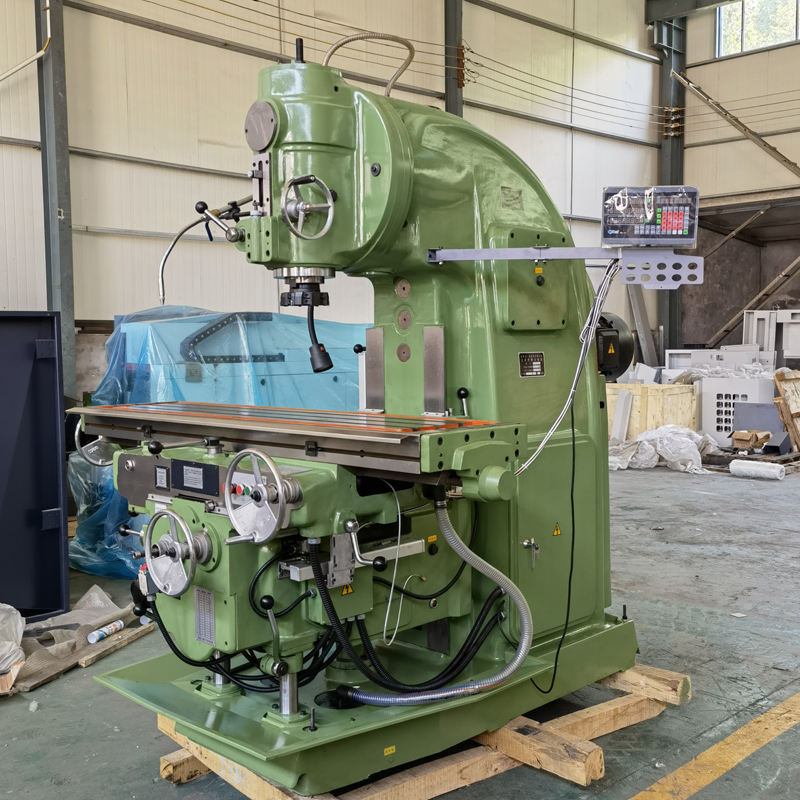

new condition milling machine

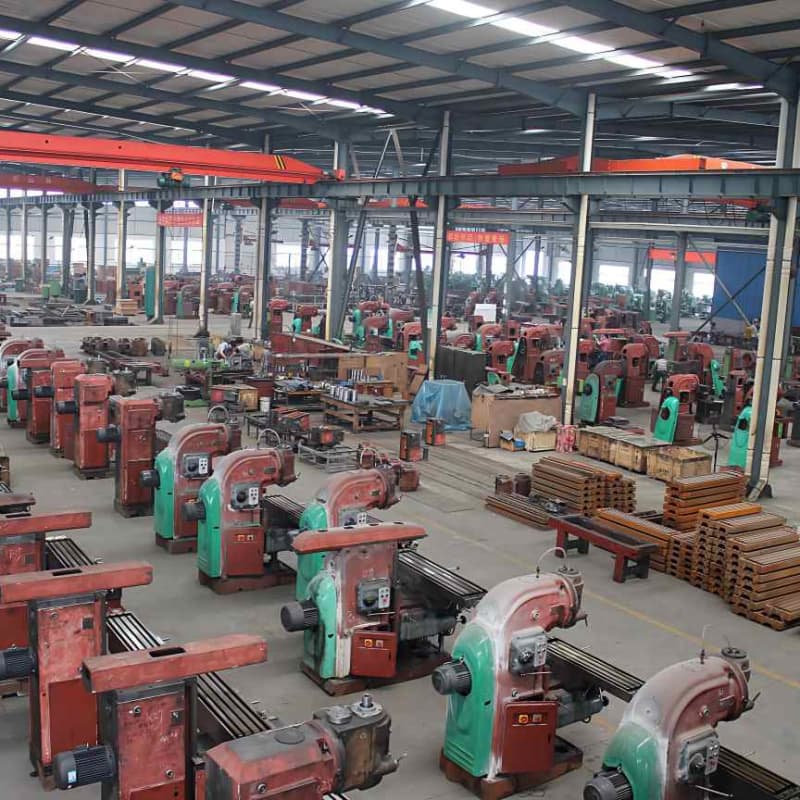

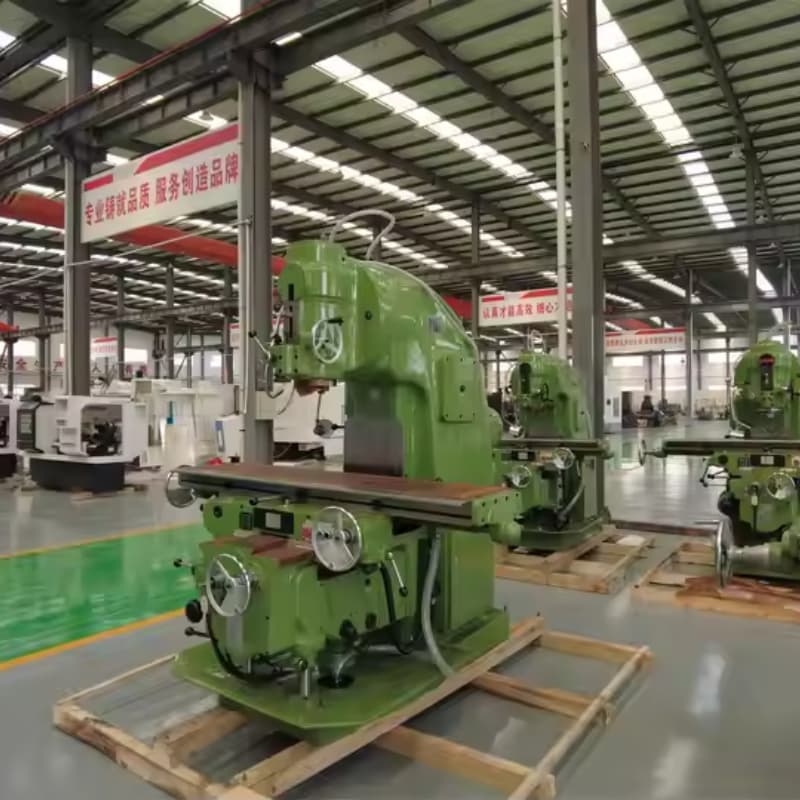

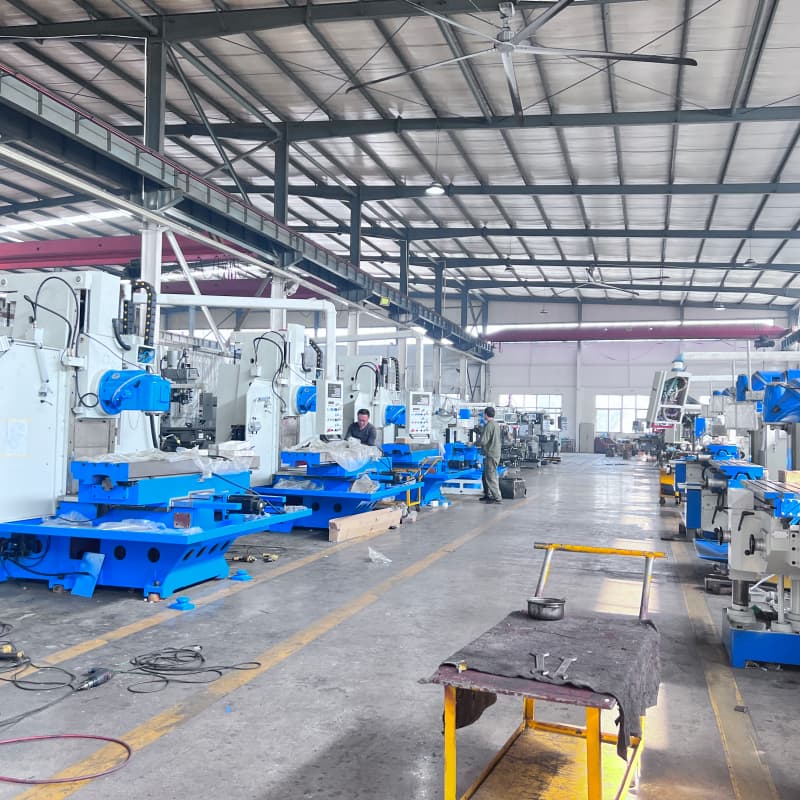

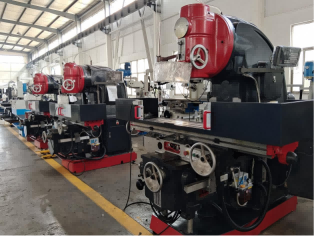

factory show

Professional Production Base, Strength in Precision Manufacturing.

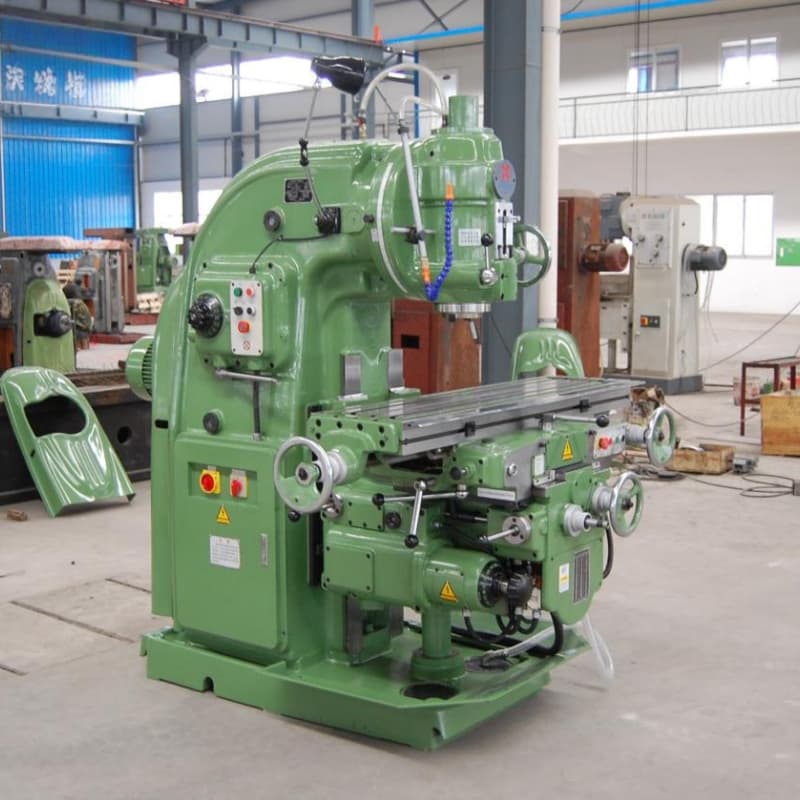

vertical cnc milling machine Heavy Duty CNC Mill

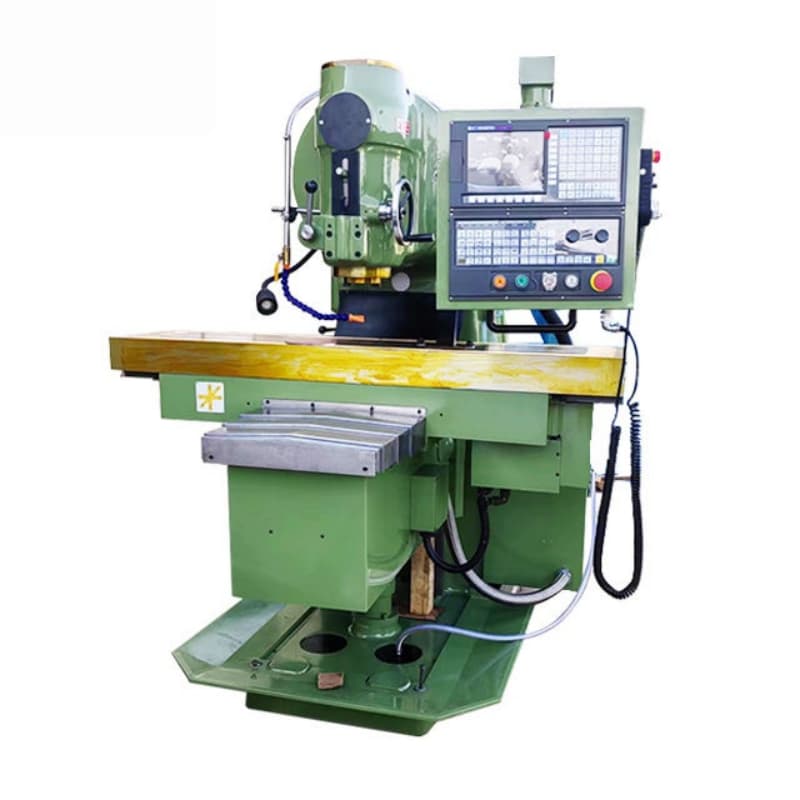

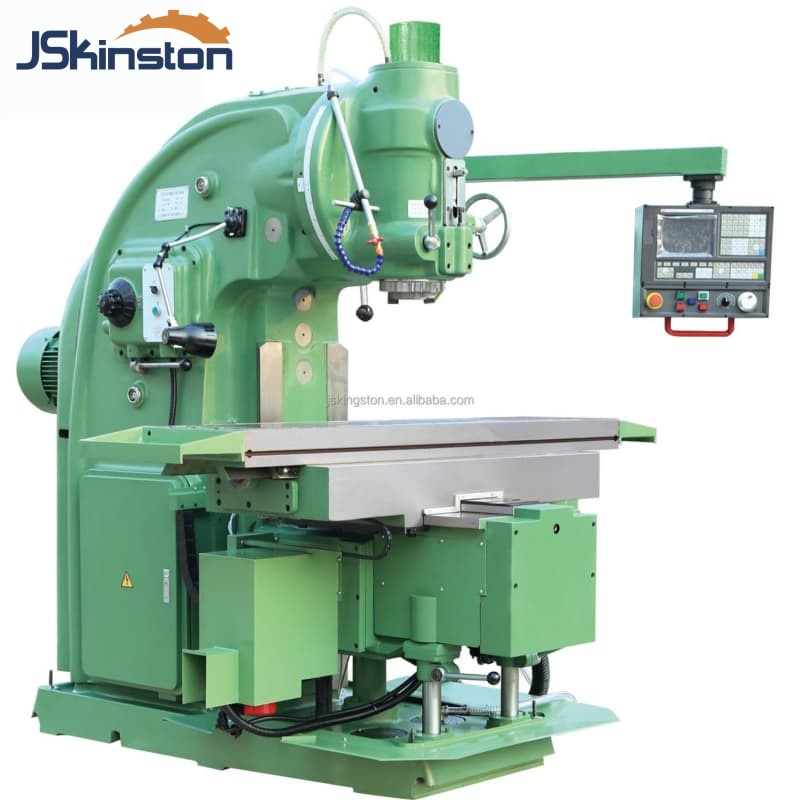

Industrial Milling Machine cnc milling machine xk5040

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

CE CNC universal milling machine

OEM Milling Machine Manufacturer

Q: What are the main structural advantages of XK5040 CNC vertical milling machine?

A: It adopts robust integral cast iron structure and vertical column design, with excellent shock resistance and structural stability during continuous cutting work.
Q: What processing tasks is the XK5040 mainly used for?

A: It is widely used for surface milling, hole processing, contour cutting and groove machining, suitable for mechanical parts and mold auxiliary processing.
Q: What are the advantages of its vertical spindle layout?

A: The vertical spindle design provides straight cutting angle, convenient workpiece clamping, clear processing vision and high operation flexibility.
Q: Does XK5040 feature fast response and high processing flexibility?

A: With sensitive feed control and reliable drive system, it can handle both single-piece customized processing and small batch mass production steadily.
Q: Why is this model popular in general workshop processing?

A: It balances reasonable size, stable performance and competitive cost, requiring less workshop space and lowering the overall investment budget.
