Heavy Duty CNC Slant Bed Lathe CKY61125 for roller flange mining parts

This machine tool is a two-axis continuously controlled CNC lathe designed for semi-finish and finish turning of shaft-type and disc-type parts. Equipped with an advanced CNC system, it is capable of interpolating straight lines, oblique lines, and arcs (for turning cylindrical surfaces, surfaces of revolution, spherical surfaces, and conical surfaces) as well as cutting straight and tapered metric and imperial threads, making it suitable for machining various disc-type and shaft-type parts with complex geometries and high precision.

Pedido (MOQ) :
1
Origem do produto :
China
Porto de embarque :
Shanghai
Tempo de espera :
40
Peso :
24500KG

Consulte agora

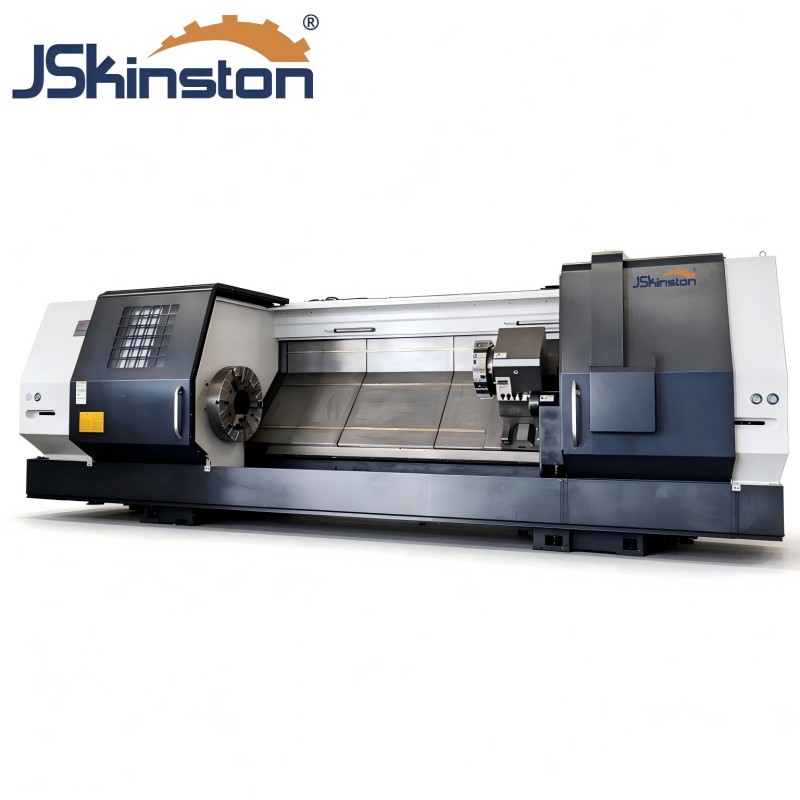

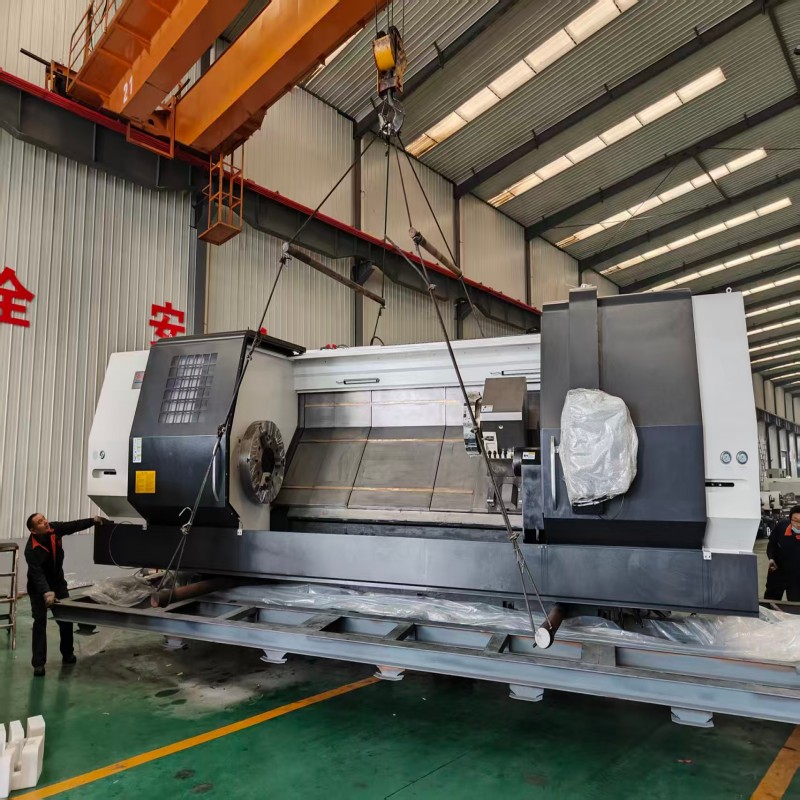

Heavy duty CNC Slant Bed Lathe CKY61125-3000

1.This machine is a two-axis continuous-control CNC lathe designed for semi-finishing and finishing of shaft-type and disc-type parts. Equipped with an advanced CNC system, it supports interpolation of straight lines, oblique lines, and arcs, as well as the turning of straight and tapered metric and inch threads.

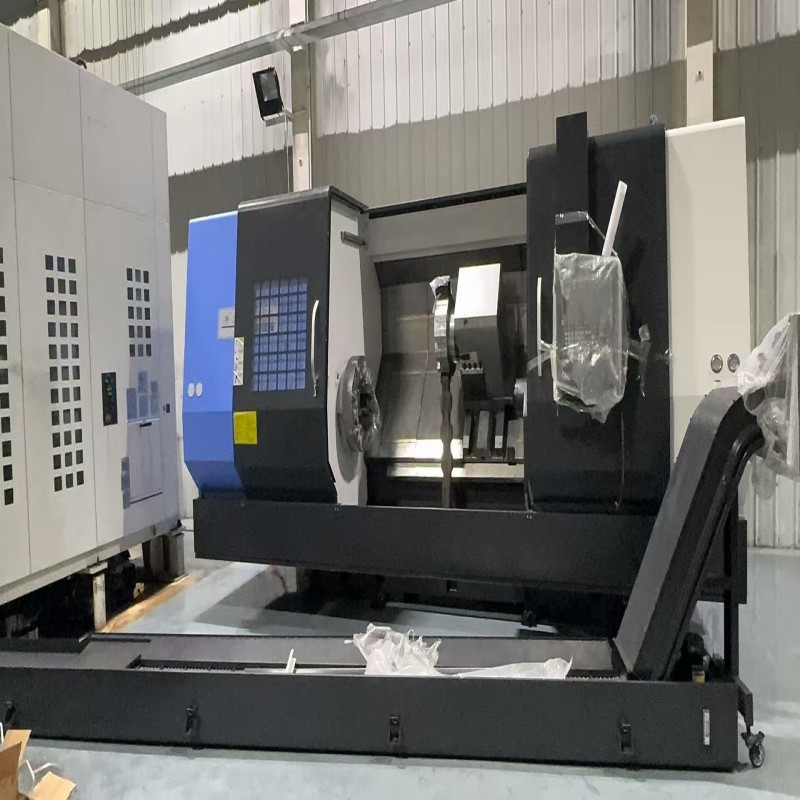

2.The machine features a 45-degree integral rear-slanting bed, which facilitates operation and adjustment, provides excellent structural rigidity, and promotes efficient chip removal.

3.The longitudinal and transverse guideways consist of high-precision, heavy-duty hardened and plastic-coated guideway pairs, which enhance machine rigidity and extend service life.

4.The machine’s spindle is driven by a wide-range speed-adjustable servo motor, featuring hydraulic two-speed shifting with stepless speed regulation within each range, improving transmission smoothness and enabling both low-speed high-torque cutting and high-speed cutting.

5.The machine is equipped with a 12-station horizontal hydraulic tool turret from Taiwan, along with appropriate fixtures, providing broad process adaptability and reducing auxiliary time during machining.

specification

Specifications			Unit	CKY61125*3000
Maximum swivel diameter on the bed			mm	Φ1250
Maximum swivel diameter of workpiece on the cross slide			mm	Φ950
Maximum workpiece length			mm	1500
Maximum turning diameter of workpiece		Shafts	mm	(Recommended for diameters of 800 mm or less)
		Discs	mm	Φ1250
Spindle bore diameter			mm	Φ115
Spindle taper				120 mm
Spindle head type				A2-15
Spindle speed range			r/min	20～350；300～800
Main motor power			kW	37/42
Hydraulic solid four-jaw chuck diameter			mm	Φ800
Tailstock sleeve diameter			mm	Φ170
Tailstock sleeve travel			mm	150
Taper bore at the front end of the tailstock sleeve				Mo's No. 6
Feed motor (X/Z)			Nm	30/30
Rapid traverse speed of feed axes (X/Z)			m/min	X∶10/ Z∶10
Maximum travel of feed axes (X/Z)			mm	650/3050
Tool holder capacity				12
Tool specifications	Outer diameter tools		mm	32×32
	Inner diameter tools		mm	Φ80
Dimensional accuracy of precision external turning				IT6
Surface roughness Ra value of precision external turning			μm	0.8-1.6
Precision turning outer diameter roundness			mm	0.005/Φ200
Precision turning outer diameter consistency			mm	0.03/Φ200x300
Precision turning end face flatness			mm	0.020/Φ300
Minimum feed axis setting increment (X/Z)			mm	0.001
Feed axis repeatability (X/Z)			mm	X∶0.007 Z∶0.025
Feed axis positioning accuracy (X/Z)			mm	X∶0.010 Z∶0.040
Machine body appearance				Color chart: RAL 9003.
Machine base				Color chart: RAL 7021.
Total machine weight			kg	24500
Overall dimensions (L × W × H)			mm	7500×2350×2200

product introduction

Spindle

The spindle features a typical high-speed, high-precision, and high-rigidity design, with high-precision spindle bearings from NSK of Japan. The spindle has two hydraulic speed ranges with stepless speed variation within each range, enabling both low-speed, high-torque cutting and high-speed cutting.
Chuck
The machine tool is equipped with an 800 mm hydraulic three-jaw chuck, ensuring secure workpiece clamping, high positioning accuracy, and excellent dimensional consistency in machining.
Tailstock
The machine tool is equipped with a hydraulic telescoping swivel tailstock, featuring hydraulic locking of the tailstock body and hydraulic clamping of the tailstock spindle. The movement of the tailstock body is controlled by a sliding saddle, and the tailstock locks automatically via a hydraulic mechanism.
